首页>Product>Butterfly valve> D943H/Y,D343 type three eccentric butterfly valve

浏览量:

D943H/Y,D343 type three eccentric butterfly valve

零售价

0.00

元

市场价

0.00

元

浏览量:

1148

产品编号

数量

库存:

所属分类

返回列表



企业荣誉企业风采

产品介绍

参数

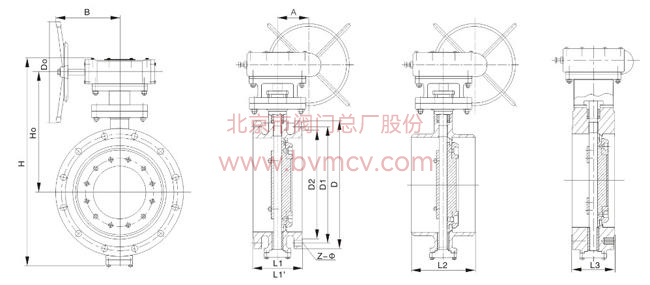

Main size of outside

Model: D34(6、7)2(3、4、5)F(X、H、W、Y)

Class	NPS (in)	Size (mm)								Worm gear device
Class	NPS (in)	Li	L2	L3	Ho	H	A	B	Do	Worm gear device
150	3	114	114	48	185	320	140	63	160	0 type
	4	127	127	54	195	342	140	63	160	0 type
	5	140	140	55	209	365	140	63	300	A type
	6	140	140	57	243	415	140	63	300	A type
	8	152	152	64	263	510	150	84	400	B type
	10	165	165	71	295	567	150	84	400	B type
	12	178	178	81	342	665	200	108	600	C type
	14	190	190	92	385	739	200	108	600	C type
	16	216	216	102	430	825	240	152	600	C type
	18	222	222	114	469	910	240	152	800	D type
	20	229	229	127	500	990	300	168	800	D type
	24	267	267	154	618	1210	320	192	800	D type
	28	292	292	229	746	1475	237	168	400	DA type
	32	318	318	241	810	1600	237	168	400	DA type
	34	330	330	241	875	1728	237	168	400	DA type
	40	410	410	300	965	1900	237	168	600	DB type
	48	470	470	254	1055	2100	237	168	600	DB type
	56	530	530	279	1163	2325	237	168	600	DB type
	60	570	570	318	1343	2600	237	168	600	DB type

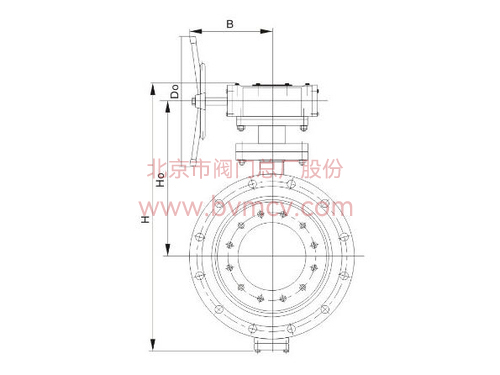

Main size of outside

Model: D34(6、7)2(3、4、5)F(X、H、W、Y)

Class	NPS (in)	Size (mm)								Worm gear
Class	NPS (in)	L1	L2	L3	Ho	H	A	B	Do	Worm gear
300	3	180	180	48	141	395	140	63	300	A type
	4	190	190	54	205	355	140	63	400	B type
	5	200	200	55	215	378	140	63	400	B type
	6	210	210	59	260	430	150	84	600	C type
	8	230	230	73	273	523	150	84	600	C type
	10	250	250	83	315	600	200	108	600	D type
	12	270	270	92	362	693	200	108	800	D type
	14	290	290	117	405	772	240	152	800	D type
	16	310	310	133	440	862	300	168	800	DA type
	18	330	330	149	525	960	320	192	400	DA type
	20	350	350	159	603	1158	168	237	400	DA type
	24	390	390	181	693	1320	168	237	300	A type
600	3	180	180	54	250	500	140	63	400	B type
	4	190	190	64	340	595	140	63	600	C type
	5	200	200	70	395	680	200	108	600	C type
	6	210	210	78	423	730	240	152	600	C type
	8	230	230	102	445	855	300	168	800	D type
	10	250	250	117	536	1002	320	192	800	D type
	12	270	270	140	614	1150	168	237	800	D type
	14	290	290	155	674	1200	168	237	400	DA type
	16	310	310	178	823	1345	168	237	400	DA type
